Make the world better by LED lighting
8 Years
| Ask Lasest Price | |
| Brand Name : | SINOMANU |
| Model Number : | SMI-P03-12W |
| Certification : | ERP CE UL RoHS PSE |
| Price : | USD6.0 -- 7.0USD/PCS |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability : | 16000 PCS/month |
| Delivery Time : | 3-10 working days ( depend on quantity ) |

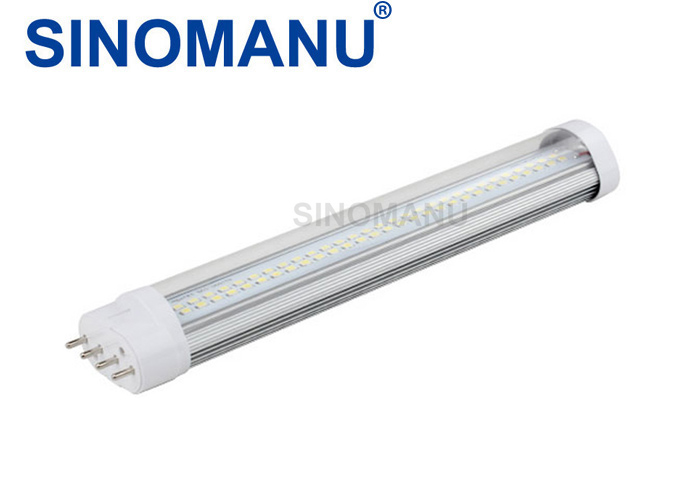

320MM 2G11 LED Tube 2G11 4 PIN LED tube 2G11 Socket LED 2G11 replacement
SNOMANU have 8 years experience in LED 2G11 Tube lights , use EPISTAR or SAMSUNG SMD LED 5630 as lighting source . the LED tube can reach 120LM / Watt and CRI82 . to be safety , only use isolated LED driver , many other supplier use non - isolated LED driver , which is cheap , but have the risk of electric shock to human body . because the housing of 2G11 is made of aluminum , if the non - isolated fail , the high voltage would be conducted to aluminum heat - sink and then to human who touch it by careless
Details for 320MM 2G11 LED Tube 2G11 4 PIN LED tube 2G11 Socket LED 2G11 replacement below
ow
| Item Name | 2G11 LED Tube | Model Number | SMI-P03-12W |
| Watt | 12Watt 1500LM | Input Voltage | AC90 - 277V 50 - 60Hz |
| Lumen Efficiency | 120LM / Watt | Quantity of LED | 60PCS |
| Brand of LED | Epistar | Type of LED | SMD LED 2835 |
| Color temperature | 2700K - 6600K | RA / CRI | 82 |
| Beam Angle | 120D | Base | 2G11 |
| Material of housing | 6063 Aluminum alloy | Color of housing | Silver |
| Powr Factor ( PF ) | 0.95 | THD | < 12% |
More information about 320MM 2G11 4 PIN LED tube 2G11 Socket LED 2G11 replacement as follow
| Brand of LED driver | SINOMANU | Efficiency of driver | 89% |
| Type of driver | Isolated and constant current | UGR | < 19% |
| Water Proof | IP54 | Shock Proof | IK10 |
| Dimension ( 2G11 ) | L320*W42*H28MM | PC cover | Clear / Milky / stripe |
| Be used in enclosed fixture | Positive | Certificates | PSE CE UL SAA BIS |
| Working Temperature | -30℃ -- 55℃ | Application | Office lighting |
| Life Span | 50000 Hours | Warranty | 3 Years |
Features of 320MM 2G11 LED Tube 2G11 4 PIN LED tube 2G11 Socket LED 2G11 replacement as followed
Ⅰ. In SINOMANU , the production department are make up of
experienced workers , they know the product very well , that is
necessary to make high quality 2G11 LED Tube lights
Ⅱ. About 2G11 LED Tube light , use 6063 aluminum alloy as the heat sink , have an excellent performance in heat dissipation from LED chip , it is a important thing , that can let 2G11 LED Tube lights work in proper temperature to have a super long lifespan and low failure rate
Ⅲ. 2G11 LED tube lights use SAMSUNG / EPISTAR SMD LED 2835 , it is
high lumen efficiency and low light decay , CRI82 . the SMD LED2835
can pass ERP test , LM79 test and energy star test
Ⅳ. Usually , 2G11 LED tube light be used in retrofit lighting fixture , The lighting effect is very well , open , half open , or enclosed retrofit fixtures, all can use it .
SINOMANU 320MM 12W 2G11 LED Tube lights can replace 24W 2G11 CFL Tube light , it is with standard 2G11 double twin pins , any retrofit lighting fixture with standard 2G11 lamp holder can use it directly .
|
|
